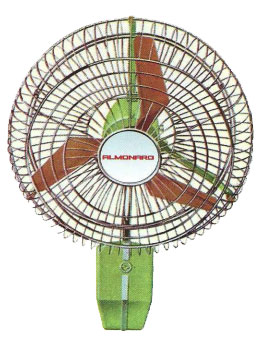

Air Circulator - Wall 18"















Specification



Sweep	Volts (V)	AC Cycles (C/S)	Power Consumption	Speed RPM	Phase	Air Delivery (M3/min)	No. Of Blades	No. of Speeds
450 mm (18")	230	50	100 W	1440	1	150	3	3







Air Circulator - Wall 24 "











Specification



Sweep	Volts (V)	AC Cycles (C/S)	Power Consumption	Speed RPM	Phase	Air Delivery (M3/min)	No. Of Blades	No. of Speeds
600 mm (24")	230	50	180 W	1440	1	270	3	1





Air Circulator - Wall 30 "











Specification



Sweep	Volts (V)	AC Cycles (C/S)	Power Consumption	Speed RPM	Phase	Air Delivery (M3/min)	No. Of Blades	No. of Speeds
750 mm (30")	230	50	250 W	1440	1	400	3	1

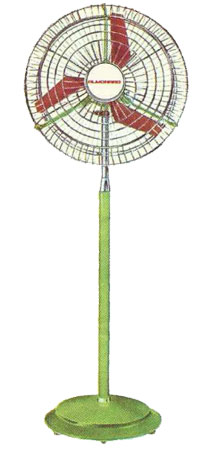

Air Circulator - Pedestal 18"









Specification



Sweep	Volts (V)	AC Cycles (C/S)	Power Consumption	Speed RPM	Phase	Air Delivery (M3/min)	No. Of Blades	No. of Speeds
450 mm (18")	230	50	100 W	1440	1	150	3	3

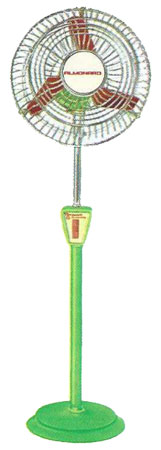

Air Circulator - Pedestal 24 "









Specification



Sweep	Volts (V)	AC Cycles (C/S)	Power Consumption	Speed RPM	Phase	Air Delivery (M3/min)	No. Of Blades	No. of Speeds
600 mm (24")	230	50	180 W	1440	1	270	3	1





Air Circulator - Pedestal 30 "









Specification



Sweep	Volts (V)	AC Cycles (C/S)	Power Consumption	Speed RPM	Phase	Air Delivery (M3/min)	No. Of Blades	No. of Speeds
750 mm (30")	230	50	250 W	1440	1	400	3	1

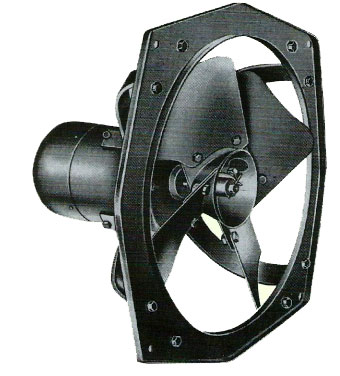

Exhaust Fan 12" to 36"



Totally enclosed, continuously rated motor

Every Almonard Exhaust Fan features a capacitor star and run type motor continuously rated, totally enclosed and ruggedly built. Designed specifically for the purpose, the motor has prelubricated double ball bearing and is provided with Class "A" and "E" insulation. The end result is a smooth, silent motor that lasts longer and deliver the maximum output at lower operating cost.



Dynamically Balanced Impeller

The impeller used in an ALmonard Exhaust Fan is of the propeller type and since both hub and impeller are dynamically balances and frames and arms mounted on rubber bushing, vibration are virtually eliminated.



Specification



Fan DIA MM/ inhches	Speed RPM	Input Power Watts	Phase	Current AMPS	Max free Air   DEL. M3/HR   CFM	Sound level dB
305/12"H/D	1400	50	Single	0.40	1710   1000	50-55
305/12"H/D	900	50	Single	0.21	1145   675	35-40
380/15"H/D	1400	160	Single	0.75	3250   1910	60-65
380/15"H/D	1400	150	Three	0.45	3250   1910	60-65
380/15"H/D	900	90	Single	0.40	2000   1175	50-55
380/15"H/D	900	100	Three	0.29	2000   1175	50-55
457/18"H/D	1400	410	Single	1.70	6120   3600	65-70
457/18"H/D	1400	410	Three	0.65	6120   3600	65-70
457/18"H/D	900	150	Single	0.65	3900   2290	55-60
457/18"H/D	900	150	Three	0.30	3900   2290	55-60
610/24"H/D	700	240	Single	0.40	7100   4175	55-60
610/24"H/D	900	500	Three	0.50	7100   4175	55-60
610/24"H/D	900	500	Single	2.60	9400   5530	60-65
610/24"H/D	900	500	Three	0.85	9400   5530	60-65
750/30"H/D	900	870	Single	3.80	12000   7000	70-75
750/30"H/D	900	910	Three	1.80	12000   7000	70-75
900/36"H/D	700	1200	Three	2.40	28100   16530	75-80
Air Vent Exhaust Fan
230/9" H/D	1400	45	Single	0.25	850   500	25-30
305/12"H/D	1350	75	Single	0.31	1400   825	40-45

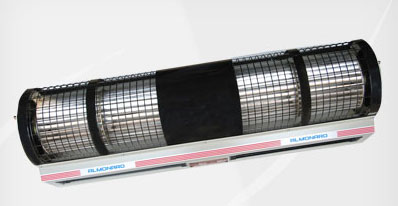

Air Curtains



Specification

AHV - Regular
SL.No	Model	Dimension in mm W x H x L	Velocity 'M/sec.'	Effective Air Flow in Mtrs.	Motor Rating WattsRPM	Current input in Amps in Mtrs. WattsRPM	Noise Level Decibels	Weight in kg.
1	AHV – 2'	265x255x610	13/14	2	150   1400	1.5   0.9	68	16
2	AHV – 3'	265x255x915	13/14	2	150   1400	1.5   0.9	68	18
3	AHV-1 mtr	265x255x1000	13/14	2	150   1400	1.5   0.9	68	19
4	AHV-4'	265x255x1200	13/14	2	150   1400	2.5   1.2	70	22
5	AHV-5'	265x255x1525	13/14	2	250   1400	3.4   1.2	70	24
6	AHV-6'	265x255x1830	13/14	2	150X2   1400	1.5X2   0.9X2	72	33
7	AHV-2mtr	265x255x2000	13/14	2	150X2   1400	1.5X2   0.9X2	72	35

AEHV
SL.No	Model	Dimension in mm W x H x L	Velocity 'M/sec.'	Effective Air Flow in Mtrs.	Motor Rating WattsRPM	Current input in Amps in Mtrs. WattsRPM	Noise Level Decibels	Weight in kg.
1	AHV – 2'	265x255x610	15/16	2.5	250   1400	3.4   1	72	19
2	AHV – 3'	265x255x915	15/16	2.5	250   1400	3.4   1	72	21
3	AHV-1 mtr	265x255x1000	15/16	2.5	250   1400	3.4   1	72	22
4	AHV-4'	265x255x1220	15/16	2.5		3.8   1.2	75	25
5	AHV-5'	265x255x1525	15/16	2.5	370   1400	3.8   1.2	78	38
6	AHV-6'	265x255x1830	15/16	2.5	250X2   1400	3.4X2   1.2	78	78
7	AHV-2mtr	265x255x2000	15/16	2.5	250X2   1400	3.4X2   1.2	78	45

AIB
SL.No	Model	Dimension in mm W x H x L	Velocity 'M/sec.'	Effective Air Flow in Mtrs.	Motor Rating WattsRPM	Current input in Amps in Mtrs. WattsRPM	Noise Level Decibels	Weight in kg.
1	AIB – 3'	360x265x915	20/22	3.5	550   1400	1.7	80	33
2	AIB-1'	360x265x1000	20/22	3.5	550   1400	1.7	80	36
3	AIB-4 mtr	360x265x1220	20/22	3.5	1100   1400	2.1	82	40
4	AIB-5'	360x265x1525	20/22	3.5	1100   1400	2.7	82	50
5	AIB-6'	360x265x1830	20/22	3.5	550X2   1400	1.7x2	85	58
6	AIB-2'	360x265x2000	20/22	3.5	550X2   1400	1.7x2	85	60

AHV-SILENT
SL.No	Model	Dimension in mm W x H x L	Velocity 'M/sec.'	Effective Air Flow in Mtrs.	Motor Rating WattsRPM	Current input in Amps in Mtrs. WattsRPM	Noise Level Decibels	Weight in kg.
1	AHV– 2' Silent	265x255x610	8/9	2	150   960	1.5	60	16
2	AHV-3'	265x255x915	8/9	2	150   960	1.5	60	18
3	AHV-1 mtr	265x255x1000	8/9	2	150   960	1.5	60	19
4	AHV-4'	265x255x1220	8/9	2	180   960	2.5	62	22
5	AHV-5'	265x255x1525	8/9	2	250   960	3.4	62	24
6	AHV-6'	265x255x1830	8/9	2	150X2   960	1.5x2	65	33
7	AHV-2' mtr.	265x255x2000	8/9	2	150X2   960	1.5x2	65	35

AHV-SMART/DELUX
SL.No	Model	Dimension in mm W x H x L	Velocity 'M/sec.'	Effective Air Flow in Mtrs.	Motor Rating WattsRPM	Current input in Amps in Mtrs. WattsRPM	Noise Level Decibels	Weight in kg.
1	A.Smart–3' Silent	290x190x915	9/10	2	150   1400	1.5	62	21
2	A.Smart-1mtr'	290x190x1000	9/10	2	150   1400	1.5	62	23
3	A.Smart-4'	290x190x1220	9/10	2	180   1400	2.5	64	26
4	A.Smart-5'	190x290x1525	9/10	2	250   1400	3.4	64	30
5	A.Smart-6'	190x290x1830	9/10	2	150X2   1400	1.5x2	66	40
6	A.Smart-2 mtr.	190x290x2000	9/10	2	150X2   1400	1.5x2	66	42

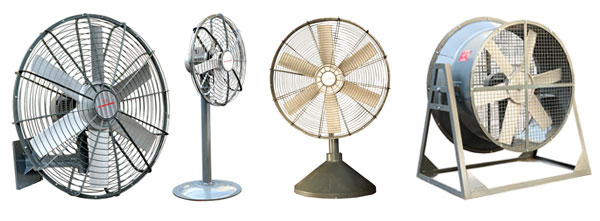

Industrial Mancoolers Wall / Pedestal / Tubular





Wall mounting or Brackets Type Mancoolers

The Wallmounting Mancoolers are suitable for mounting at higher elevation in the wall or stanchion to avoid the occupation of floor space. These fans are mounted on steel pipe with suitable holes in the base plates for heavy duty Motors.

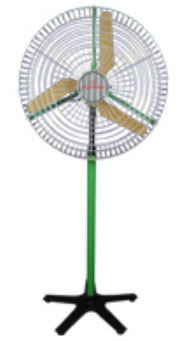

Pedestal Type Mancoolers

These type Mancoolers are designed to place on the shop floors. The cast aluminum alloy, statically and dynamically balanced impeller of high efficiency Aerofoil Section blades is mounted directly on the motor shaft with suitable, sturdy protection guards and mounted on the steel pipe with motor base plate. The cast iron solid base holds the assembly on the floor free from Vibration The Air throw can be adjusted vertically for various positions. Castor wheels can be provided for the special application on specific request.

Tubular Type Mancoolers

In this type of Mancoolers, the impeller and Motor Assembly is mounted in the circular casing with suitable stand arrangement. This can be moved from place to place easily even in rough floor areas. The Air flow can be adjusted vertically for any convenient Position. Necessary protection guards are also provided on both sides of the casing.

Technical Specification for Industrial Heavy Duty Type Man Cooler

Specification



Sweep mm/ inches	H.P.	RPM	Total air delivery 10 times blade sweep(M3/Hr.)	Min Peak air velocity at a distance of 10 times blade sweep (M.min.) 15 times blade sweep (M.min.)
457(18")	0.5	1370	12000	200 150
457(18")	2.0	2810	24000	250 200
610(24")	0.75	1400	28000	250 150
762(30")	2.0	1400	37000	250 150
914(36")	2.0	920	56000	250 150
914(36")	3.0	1400	65000	275 175
1220(48")	5.0	950	74500	250 150
